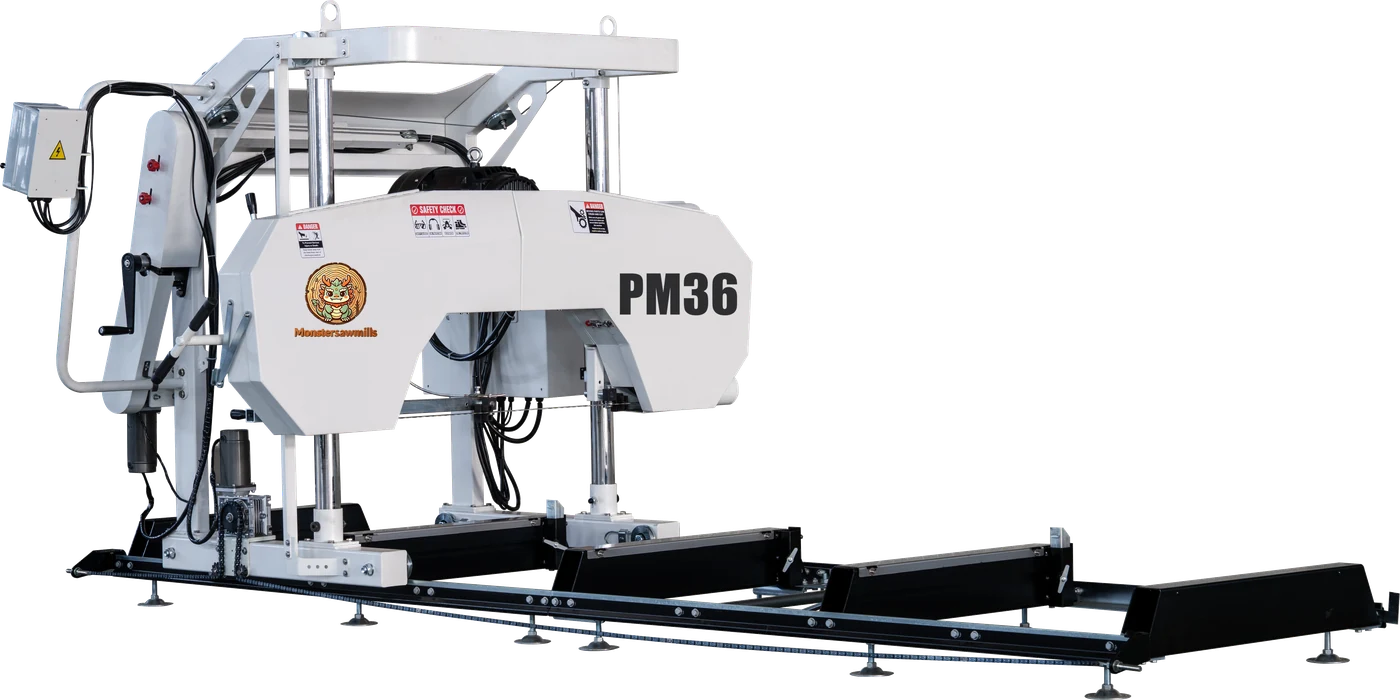

PM36

A 36-inch class band sawmill for one person to run all day. Takes logs to 920 mm, cuts boards 880 mm wide by 850 mm deep, and travels on a four-section bed that bolts together where the logs are. Chain head lift, water fed to the blade at the cut, and a pendant control box you carry down the log.

920 mm36 in
880 mm35 in
3 m9.8 ft

Figures are for the standard four-section bed. Longer track and power feed are quoted separately.

Get pricing Download spec sheet

What it does well

Takes logs to 920 mm and cuts boards 880 mm wide by 850 mm deep
Chain head lift with a graduated scale, so a batch of boards comes out the same thickness
Water is metered onto the blade at the cut, keeping the band cool and the kerf clear
Four bed sections bolt together on site and level on adjustable feet - grass, gravel or concrete

What's included

Sawmill head, band wheels and four bed sections
Blade guide assembly with the water tank and metering valve
Pendant control box with an emergency stop
Screw log clamp, adjustable support feet, tool kit and operating manual

How it works

The assemblies that decide how the cut comes out.

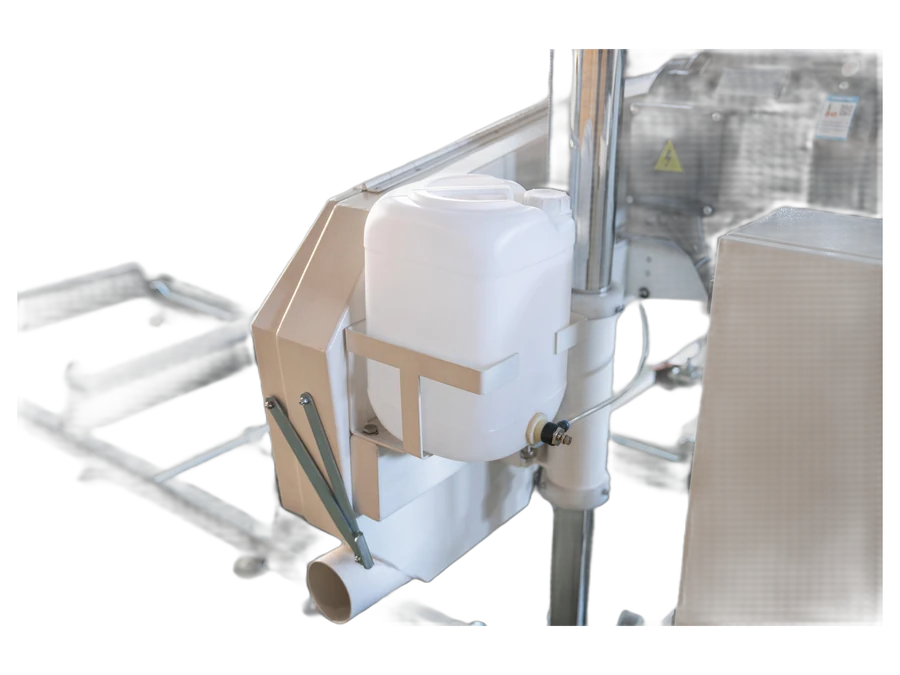

Blade lubrication right at the cut

A gravity tank on the mast drops water onto the blade through an adjustable valve. Wet cutting keeps the band cool, flushes sawdust out of the kerf and stops resin building up on the wheels - the difference between a blade that lasts a season and one that lasts a weekend.

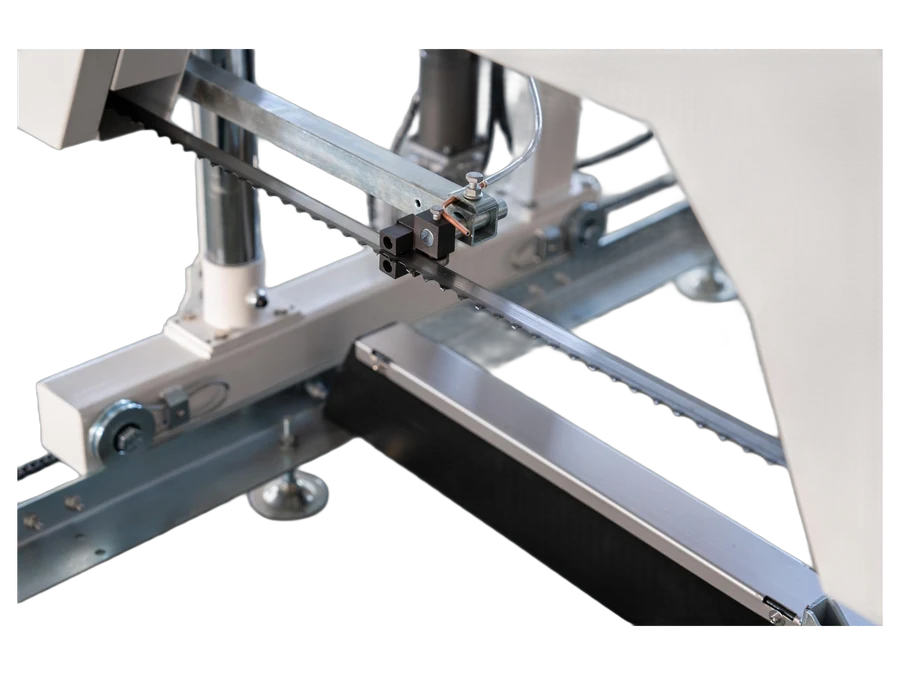

Head lift you read, not guess

A chain drive raises the head and a graduated rack on the mast shows exactly where it is. Set a thickness, cut, reset, cut again. The blade runs in a guide that tracks the rail, so the cut stays square at the far end of a 3 m log.

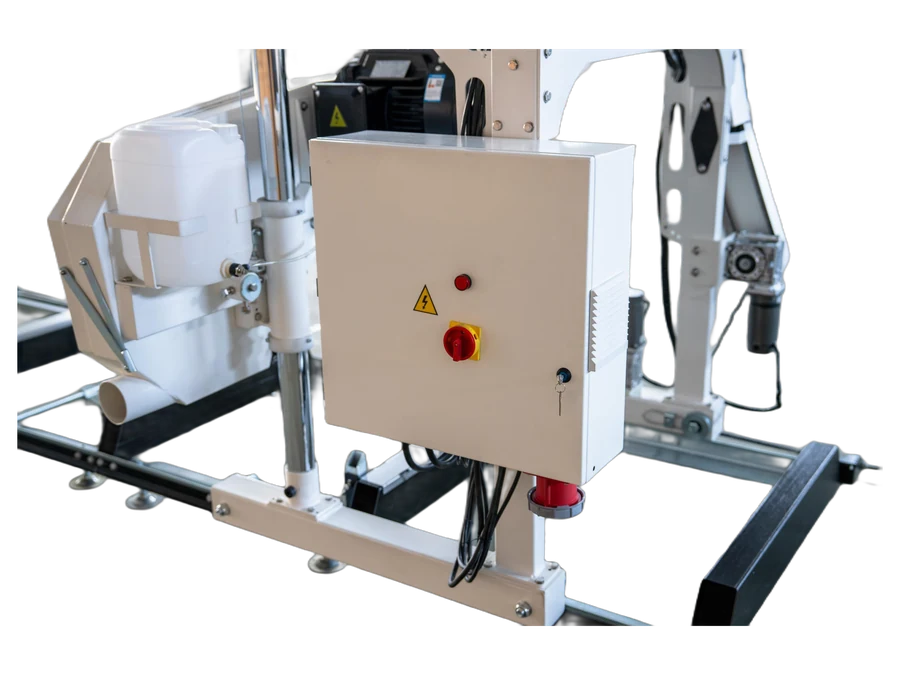

Controls within reach, stop within a hand

The electrical box carries the isolator, the indicator light and a mushroom emergency stop. The pendant control hangs on a cable, so you walk alongside the log watching the cut instead of reaching back to the frame every pass.

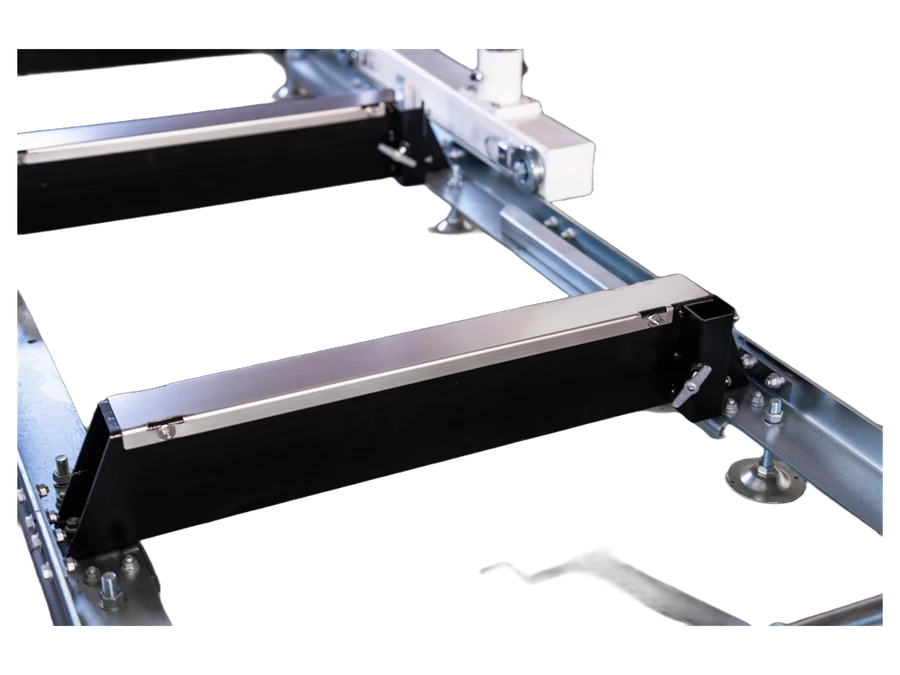

A bed that goes together square

Four bolt-together sections make up 4.0 m of track, each sitting on an adjustable foot. Set up on grass, gravel or a concrete pad without shimming first. The cross beams are box section, so the bed stays straight under a full-length log.

Every detail

Close-ups of the parts you will adjust.

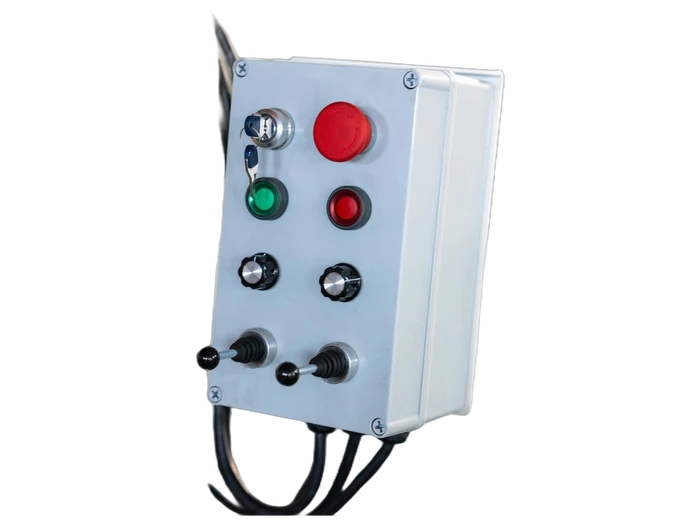

Pendant control box - start, stop and feed controls to hand

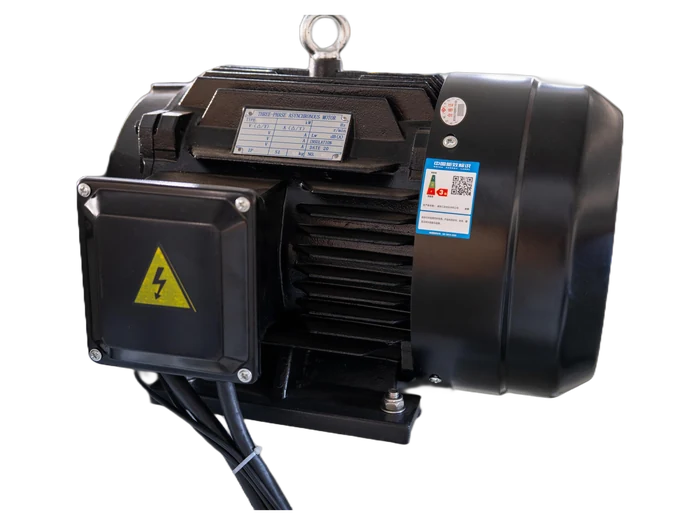

Three-phase drive motor and the electrical enclosure

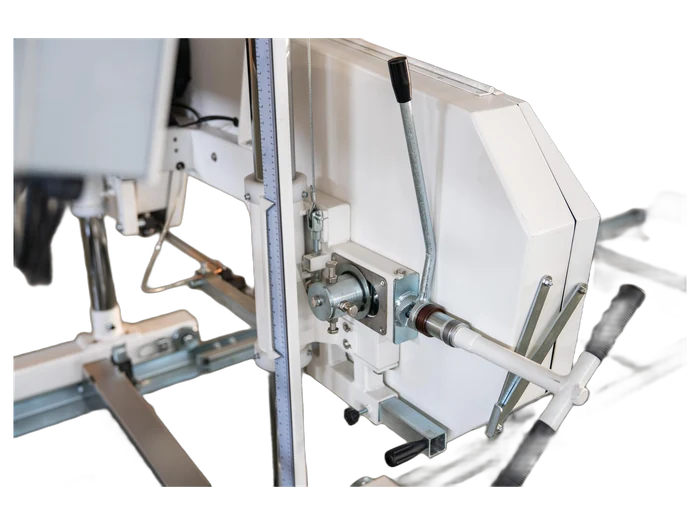

Band wheel tensioner with the tension lever

See it cutting

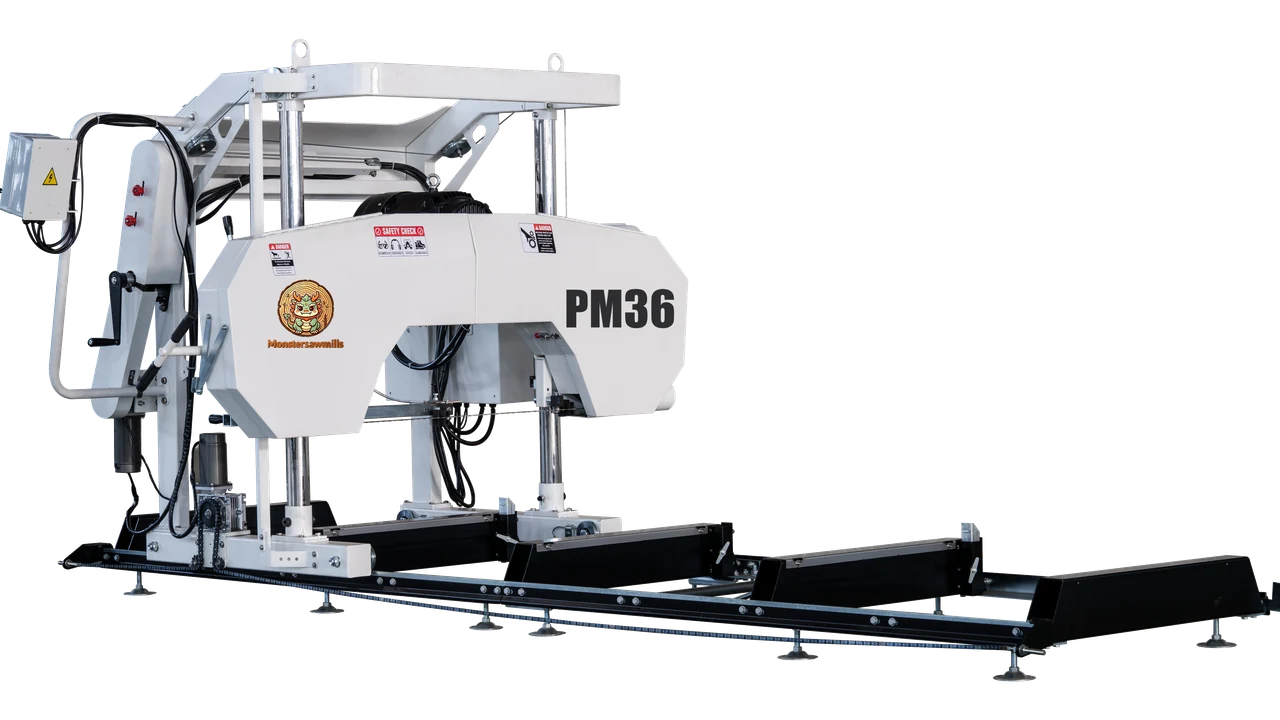

PM36 — Watch video

Video coming soon

Filming is under way — ask us and we will send the cutting clip.

Specifications

Max log diameter: 920 mm36 in
Max width of cut: 880 mm34.6 in
Max depth of cut: 850 mm33.5 in
Standard log length: 3 m9.8 ft
Bed and track: Four bolt-together bed sections, 4.0 m of track in total
Blade length: 4,350 mm171.3 in
Blade width: 35 mm1.4 in
Band wheels: 476 mm diameter, running at 727 rpm
Head lift: Chain drive, with a graduated rack cut into the mast
Blade lubrication: Gravity tank and metered valve, fed to the blade at the cut
Machine weight: 520 kg1,146 lb
Power: Three-phase electric as standard, with a pendant control box; petrol version available
